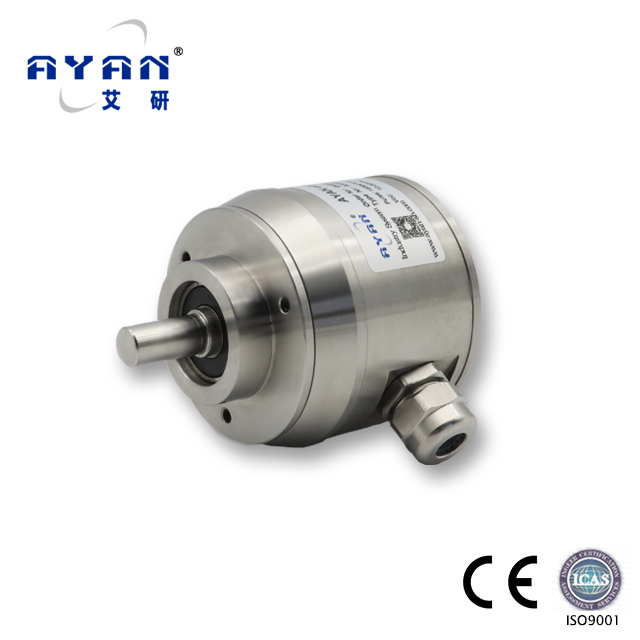

Stainless steel AAS58 series single turn 4-20mA output

4-20mA analog output, industrial grade encoder, all stainless steel, corrosion resistant environment; zero setting and counting direction setting fun...

Category:

AYAN Absolute encoder

Product Accessories:


Product description

Mechanical specifications

Qualification

Material

Shell

304 stainless steel

EMC:

Flange

304 stainless steel

Emitted interference:EN61000-6-4

Shaft

304 stainless steel

Noise immunity EN61000-6-2

Maximum shaft load

Max 80N   Axial

ISO9001:2015

Max 150N  Radial

CE   authentication

Levels of protection

IP65



Starting torque

25,  ≤0.5Nm



Maximum speed

6000RPM



Impact resistance

≤ 100g ,3ms



Anti-vibration

≤ 10g 10Hz—2000Hz



Weight

≈ 300g



Working temperature

-40 - +80



Storage temperature

-40 - +85









Electrical specifications

4-20mA Linear correspondence

Interface type 1

4-20mA interface type output

conversion accuracy16bits

Interface type 2

RS485 output or Analog programming



Output code system

ASCII code



Baud rate

4800

9600

19200

38400

115200



Data response

8ms

4ms

2ms

1.8ms

1.8ms

Allowed addresses range

0 -- 99



No-load current

≤80mA



Steps per revolution

Single-turn max 13bits (8192)



Revolutions (turn)

Multi-turn max 14 bits (16384)



Repeatability precision

±2bitsrelated to the installation accuracy and the concentricity of the shaft)



Counting direction

Can be set



External position

Can be set,Turn-on delay>100ms
